Professional PEM Hydrogen Inhalation Machines. Built for Your Brand. Trusted in 30+ Countries.
150–3000 ml/min H₂ Output · 99.99% Purity · SPE/PEM Technology · CE Certified · 1 Unit MOQ for Samples
Where Your Customers Will Use Them
Each model is purpose-built for its environment. Match the machine to the use case.
Home Wellness
Daily 1–2 hour sessions. Quiet operation (≤45dB). Night mode with dimmed display. Compact enough for a bedroom or living room.
Wellness Clinics & Studios
Multi-user daily operation. Adjustable flow for different client needs. Timed sessions with automatic shut-off. Easy water refill with large tank.
Find the Right Model for Your Market
From entry-level pure hydrogen to clinic-grade high-flow machines. Every model shares the same PEM core — the difference is output, features, and positioning.
| Parameter | Q2S-300 | Q2SH-450 | Q2SH-900 | Q2SH-1800 | A2WH-3000 |
|---|---|---|---|---|---|
| Gas Type | Pure H₂ | H₂/O₂ 2:1 Available | H₂/O₂ 2:1 Available | H₂/O₂ 2:1 Available | H₂/O₂ 2:1 Available |
| Max Flow | 300 ml/min | 450 ml/min | 900 ml/min | 1,800 ml/min | 3,000 ml/min |
| Adjustable | 150 / 300 | 150 / 300 / 450 | 300 / 600 / 900 | 600 / 1200 / 1800 | 1000 / 2000 / 3000 |
| Purity | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% |
| Power | 150W | 200W | 300W | 400W | 600W |
| Packing Weight | 6.5 kg | 6.5 kg | 6.5 kg | 7.5 kg | 7.5 kg |
| Dimensions | 193×285×300mm | 193×285×300mm | 193×285×300mm | 193×285×300mm | 235×253×360mm |
| Water Tank | 2.5L | 2.5L | 2.5L | 2.5L | 2.5L |
| Timer | 1–8 hrs | 1–8 hrs | 1–8 hrs | 1–8 hrs | 1–8 hrs |
| H₂ Water | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes |
| Best For | Home Entry | Home Premium | Clinic / Studio | Professional | High-Volume Clinic |
| vs. Retail | 40–60% below retail | 40–60% below retail | 40–60% below retail | 50–65% below retail | 50–65% below retail |
| See Details → | See Details → | See Details → | See Details → | See Details → |
🔵 Pure H₂ (Q2S Series)
Lighter machine, simpler operation. Best for first-time users and home markets. Single-button start, no mode switching needed.
🟡 Brown's Gas + H₂/O₂ Available
Three modes in one device — pure hydrogen, Brown's Gas (2:1 H₂+O₂), and pure oxygen. Our bestselling professional line. Maximum versatility for clinics.

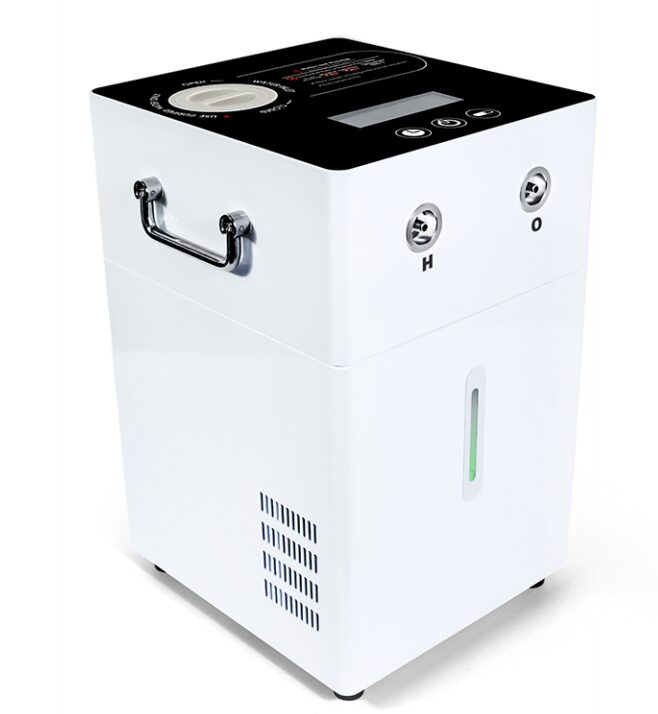

🟠 A2WH-3000 — Compact Powerhouse
Delivers 3,000 ml/min in a chassis lighter and smaller than competitors at the same flow rate. Fixed 2:1 H₂+O₂ ratio with dual output available — continuous operation, external water supply ready.
Need help choosing? Take the 30-second quiz →

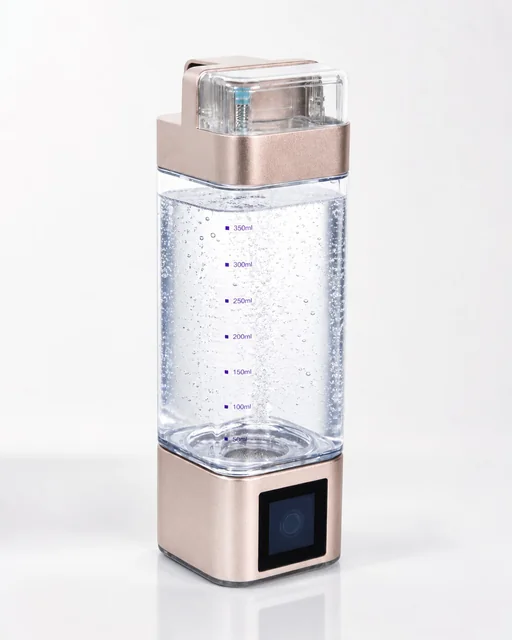

Hydrogen Water Bottles — Portable PEM Technology
Same DuPont™ PEM technology in a portable bottle. 5,000–8,000 ppb, dual-chamber design works with any drink — tea, coffee, juice. Starting from OEM wholesale pricing.
Accessories
Every machine comes with essential accessories. Upgrade for specialized therapy needs.
Included
Nasal Cannula
Standard hydrogen inhalation accessory. Comfortable soft-tip design. Random color shipped.
Included
Hydrogen Water Rod
Diffuser rod for making hydrogen-rich water (~1,500 ppb in 10 min). Random color shipped.
Extra
Hydrogen Eye Mask
Connects to H₂ outlet for targeted eye-area hydrogen therapy. Popular in beauty & wellness clinics.
Extra
Hydrogen Water Pot
Large-capacity container with built-in diffuser. Produces hydrogen water for the whole family.
Extra
Hydrogen Ear Plug
Targeted hydrogen delivery for ear canal therapy. Used in wellness clinics for hearing health protocols.
Extra

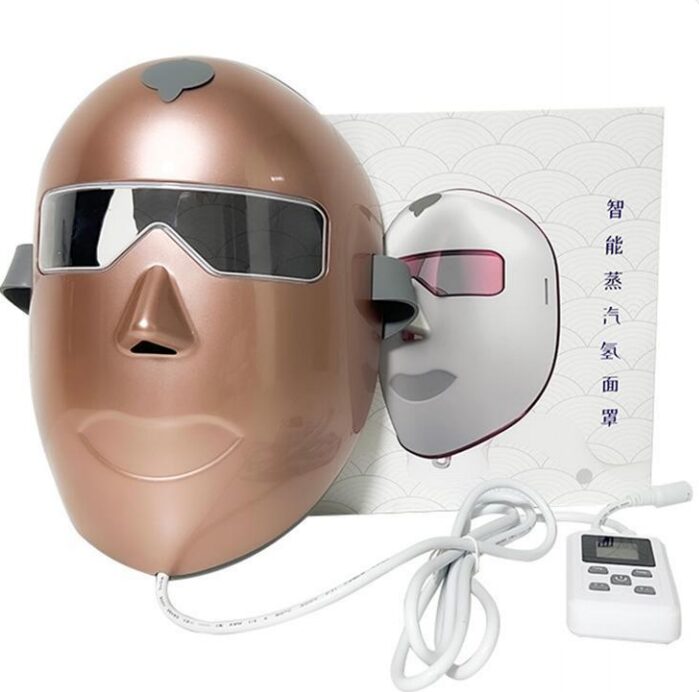

Hydrogen Steam Face Mask
Full-face hydrogen steam therapy for skin care. Popular add-on in beauty & spa businesses.
The Core That Makes the Difference
Same DuPont™ membrane used in the Toyota Mirai. Industrial-grade PEM technology, miniaturized for your customers.
SPE/PEM Proton Exchange Membrane
Same technology used in Toyota Mirai and industrial hydrogen production. A solid polymer electrolyte separates hydrogen and oxygen at the molecular level — no chemicals, no alkaline solution, just pure water.
Our membrane: DuPont™ Nafion™ N117, imported from USA.
99.99% Hydrogen Purity
Third-party tested and verified. Unlike alkaline electrolysis — which produces impurities — PEM electrolysis delivers medical-grade purity hydrogen directly from distilled water.
Test report available on request.
10,000+ Hour Rated Lifespan
Our electrolyzer stack is rated for more than 10,000 hours of continuous operation. That's ~13+ years of daily 2-hour use. When replacement is eventually needed, it's a modular swap — not a machine replacement.
Replacement module: ~$100–600 (varies by flow rate). User-serviceable.
Triple Safety System
Pressure sensor for automatic shut-off if internal pressure exceeds safe limits. Water quality sensor alerts when TDS is too high. Internal humidity sensor prevents water damage.
CE-LVD certified. On-demand production — no compressed gas storage.
Certification & Compliance
Not just logos. Every certification explained — so your customers know exactly what's covered.
CE-LVD (Low Voltage Directive 2014/35/EU)
Covers safety requirements for electrical equipment operating between 50–1000V AC. Passed insulation resistance, dielectric strength, and earth continuity tests.
CE-EMC (Electromagnetic Compatibility 2014/30/EU)
Ensures the device does not interfere with other electronic equipment. Critical for clinic environments with multiple devices.
RoHS (Restriction of Hazardous Substances)
All components comply with EU limits on lead, mercury, cadmium, and other restricted substances. Import with confidence.
FCC (USA)
Compliant with FCC Part 15 for unintentional radiators. Required for US market entry.
PSE (Japan)
Japanese electrical safety certification. Certified for Q2SH and Q2S series. Required for Japanese market entry.
| Target Market | Required Certifications | Our Status | Notes |
|---|---|---|---|
| 🇪🇺 EU | CE-LVD + CE-EMC + RoHS | Complete | EU Rep available (can assist) |
| 🇺🇸 USA | FCC | Complete | Not filed as medical device (FDA) |
| 🇯🇵 Japan | PSE | Complete | Certified for Q2SH/Q2S series |
| 🇬🇧 UK | UKCA | In Progress | CE accepted during transition |
| 🇦🇺 Australia | RCM | Per Order | Can assist with certification |
ℹ️ We work with a registered EU Authorized Representative (EC-REP). Your shipments to EU customers are fully compliant with GPSR 2023/988.
Transparent Pricing. No Hidden Costs.
We list everything — equipment, consumables, maintenance, shipping. Because your margin depends on knowing the real cost.
| Cost Item | Amount (USD) | Frequency | Notes |
|---|---|---|---|
| PEM Electrolyzer Replacement | $100–600 | ~10,000+ hrs | Varies by flow rate & model; modular swap, user-serviceable |
| Filter Replacement | $10 | Every 6 months | Deionization resin cartridge |
| Annual Maintenance Kit | $25 | Yearly | Tubing, seals, inspection |
| Distilled Water | ~$5/yr | Ongoing | ~1 gallon per 2 weeks |
Every Machine Is Tested Before It Leaves
Not just a QC stamp. Every unit goes through a 12-point inspection. Here's what a real inspection sheet looks like:
Hydrogen Flow Rate
±5% of rated · Mass flow meter
Hydrogen Purity
≥99.9% · Gas chromatograph
Insulation Resistance
≥10MΩ · Insulation tester
Dielectric Strength
1500V / 1 min · Hi-pot tester
Operating Noise
≤45dB(A) · Sound meter
Water Tank Seal
No leakage · Visual + pressure
Button Function
All operational · Functional test
Display Panel
No dead pixels · Visual inspection
Timer Accuracy
±1 min · Stopwatch
Water Level Sensor
Proper trigger · Functional test
Overheat Protection
Proper trigger · Thermal test
Visual Inspection
No scratches / color deviation
📋 Actual inspection reports available for review before ordering. Every machine ships with its individual QC sheet.
Trusted by Businesses Worldwide
Real partners. Real results. Real names available for qualified inquiries.
Not Sure Which Model? Take 30 Seconds.
Answer three questions. We'll point you to the right model for your market.
Q1: Who will use this device?
Q2: What gas type do they need?
Q3: What's their budget per unit (FOB)?
Still not sure? Ask our engineer →
From Order to Delivery
Orders ≤10 units ship from stock within 3 days. Larger orders follow standard production timeline below.
Custom / bulk orders (10+ units):
| Destination | Method | Transit Time | Est. Cost (per unit) |
|---|---|---|---|
| 🇪🇺 Europe | UPS / FedEx | 5–7 days | ~$180–280 |
| 🇺🇸 North America | UPS / FedEx | 5–7 days | ~$200–300 |
| 🇯🇵 Japan | FedEx | 3–5 days | ~$120–180 |
| 🌏 Southeast Asia | FedEx / Sea | 5–20 days | ~$100–250 |
📦 Every shipment includes free documentation: Commercial Invoice, Packing List, Certificate of Origin, Bill of Lading / AWB.
Ask Our Engineer
Got a technical question our sales team can't answer? Talk directly to the person who builds these machines.
110V/60Hz for US market
Custom flow rate calibration
Membrane replacement procedure
Interface language customization
Multi-unit clinic setup
Who This Is NOT For
We'd rather tell you now than disappoint you later.
You're looking for the cheapest hydrogen device on the market.
We use DuPont™ Nafion™ N117 membranes, not generic alternatives. Our machines feature aluminum alloy housings — not plastic — because hydrogen inhalation devices generate significant heat during operation and require proper thermal management. Quality has a floor. There are cheaper factories, but compromising on materials means compromising on safety and durability.
You need next-day delivery from local stock.
We ship from our factory in China or arrange drop shipping to your customers. Small orders (≤10 units) ship within 3 days from stock. Every machine is built, tested, and QC'd to order — that takes time, but it ensures quality.
You want to resell on Amazon without after-sales support.
We support our distributors with parts, training, and warranty — we expect the same for end customers. These are professional devices, not impulse purchases.
You don't believe in preventive health technology.
Our business is built on science, not hype. If you can't stand behind the technology, your customers won't either.
If none of that describes you — we should talk.
What Buyers Ask Before Investing in Hydrogen Inhalation Devices
Get a Quote
Tell us about your project. We'll respond within 24 hours with pricing, timeline, and recommendations.
